5kg Handle Scale Intelligent Coffee Machine High Temperature Load Cell

4 Pieces
MOQ
$5.00(4 - 3999 Pieces) $2.50(4000 - 19999 Pieces) $2.00(>=20000 Pieces)
Prix
5kg Handle Scale Intelligent Coffee Machine High Temperature Load Cell
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Warranty: 1 year
Customized support: OEM, ODM, OBM
Model Number: MLC614H
Power Supply: NA
Display Type: NA
Rated load: 3~10kg
Rated output: 1±0.03mv/v
Dimension: 75*9*16mm
Material: Alloy aluminum
Comprehensive error: 0.05FS
Application: handle scale,kitchen scale,fish scale
Zero balance: ±0.1%FS
Excitation voltage: 5~10VDC
Certification: Reach
Informations de base
Certification: Reach
Model Number: MLC614H
Conditions de paiement et expédition
Packaging Details: 1pcs/polybag, 50pcs/inner box, 500pcs/outer box
Description de produit
Product Description

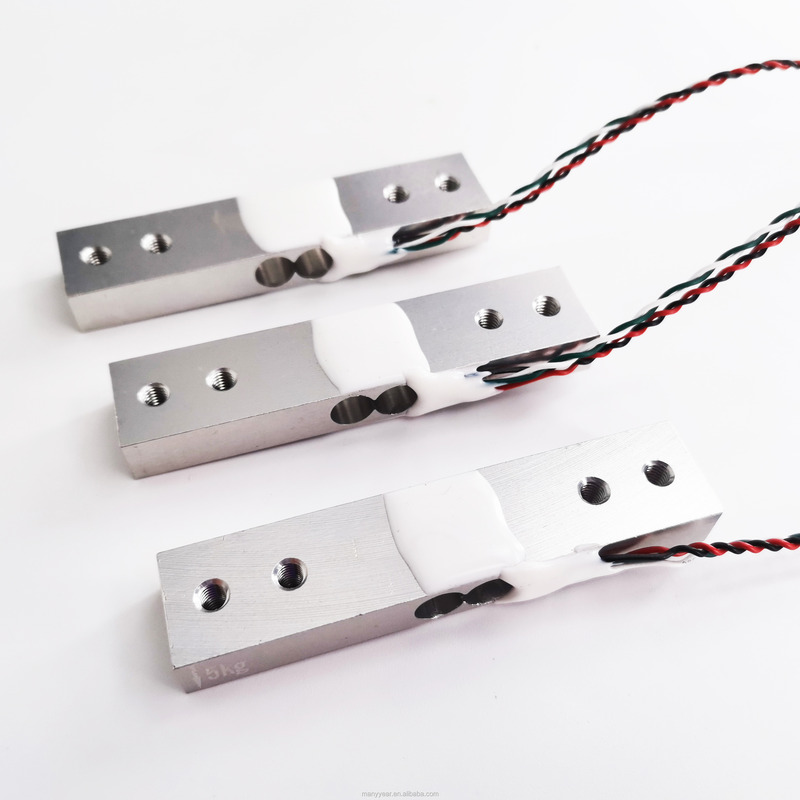

Smart coffee machine high temperature load cell 5kg
Model: MLC614H
Category: Micro load cell
Load range: 3~10kg
Dimension: 75*9*16mm
Material: alloy aluminum
Application: handle scale,kitchen scale,fish scale, postal scale

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
Comprehensive error:
0.05FS
Output resistance:
1000±10Ω
Rated output:
1±0.15mv/v
Insulation resistance:
≥2000MΩ(100VDC)
Non-linearity:
0.05%FS
Excitation voltage:
5~10VDC
Hysteresis:
0.05%FS
Compensated temp:
-10~+40ºC
Repeatability:
0.05%FS
Use temperature:
-20~+55ºC
Creep:
0.05%FS/10MIN
Temp effect on zero:
0.05%FS/10ºC
Zero balance:
±0.1%FS
Temp effect on span:
0.05%FS/10ºC
Input resistance:
1090±10Ω
Defend grade:
IP66
Product Assembly Structure
Blow force structure is for reference.
Product Process
for the load cell product process, include total 26 word step, take about 20days.
Product Application
this load cell can apply to pricing scale, packing scale, platform scale.
Delivery and Shipment
this load cell can apply to pricing scale, packing scale, platform scale.
Related Products
Company Introduction
MANYYEAR Technology was established in 2008. We focus on mechanical measurement and design, and provide customers with precise mechanical sensor products. We have our own production base, with complete sensor production processes from CNC processing, strain gauge production, metal surface treatment, sensor packaging, sensor testing, engineering testing, sensor calibration, etc. And can provide customers with 1000 KPCS per month of qualified product capacity. Our factory has passed ISO9001 standard. Our products have CE, ROHS, invention patents and other qualifications. We provide OEM and ODM services to our customers. We provide free design assistance to our customers. We have established the following product system: Load Cell Force Sensor Torque Sensor Pressure Sensor Infrared Pyrometer Weighing Instrument Pressure Gauge
